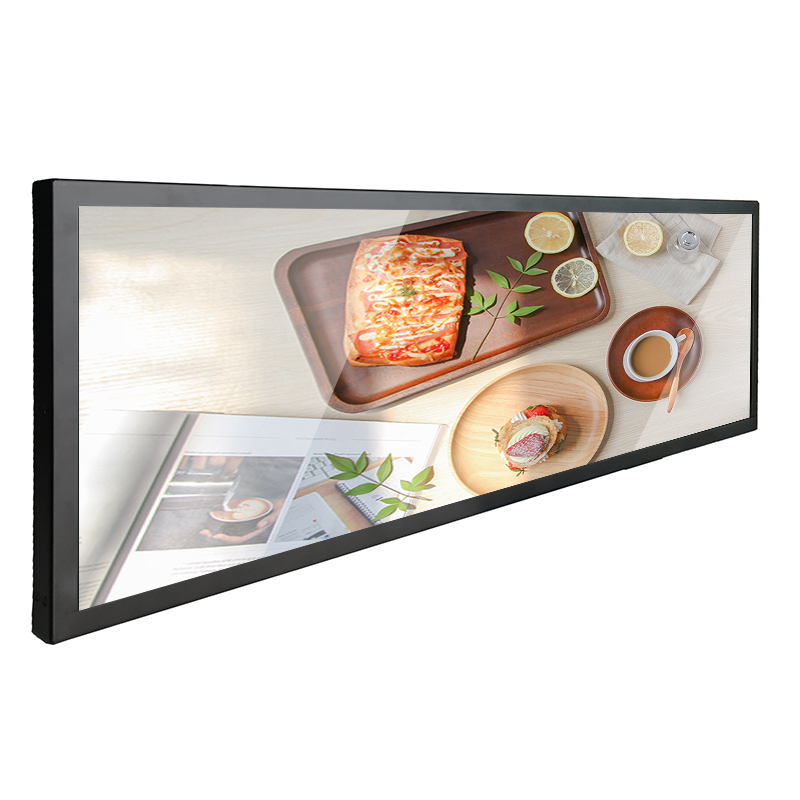

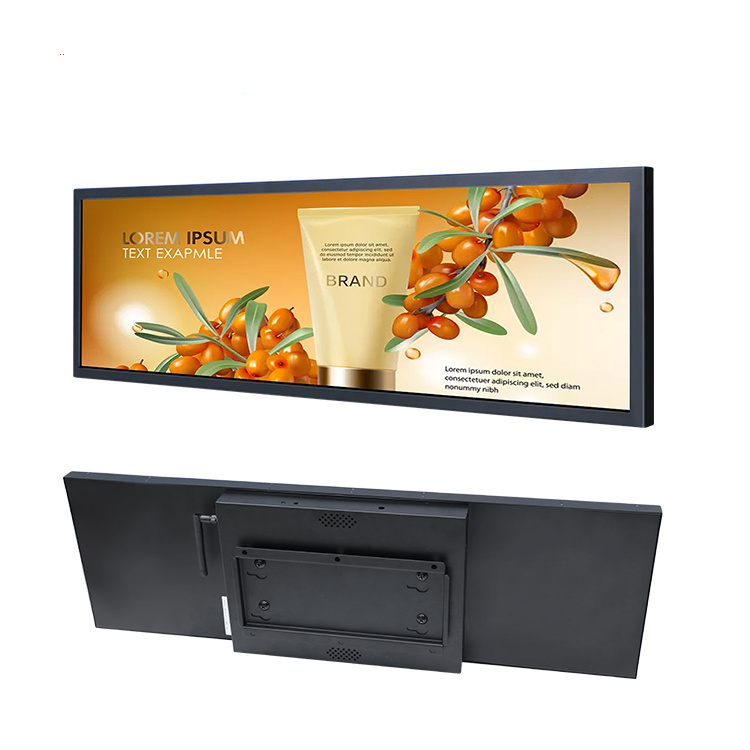

28.6″ Stretched Bar Display for Retail and Brand Activation. (Model-DSB286)

Description

Why Choose a Bar Screen: Maximizing Visual Impact and Information Delivery in Limited Spaces for Several Scenarios

The essence of a stretched bar LCD screen is to transform traditionally unusable “corner spaces” into high-value “digital advertising spaces” or “information display windows”.

The DSB286 transforms the space above shelf edges, gondola tops, and checkout counters into a live digital content channel. Wi-Fi 6 connectivity, 50,000-hour lifespan, 500 cd/m² brightness, and 1920×540 resolution — with a dual-persona platform built to serve both retailer operations and brand owner activation from the same screen.



The stretched bar LCD doesn’t compete for display space. It creates it.

The space above shelf rails, along gondola edges, and across checkout counters is traditionally dead space — too narrow for standard signage, too prominent to ignore. The DSB286 occupies it precisely. At 714mm wide and only 226mm tall, it installs into the spaces that standard displays can’t reach, turning every shelf edge in the store into a live communication channel.

For retailers: reduce cost, increase control

• Instant price updates — change prices across every shelf display simultaneously from one dashboard. No printing, no distribution, no labour cost.
• POS synchronisation — shelf prices and checkout prices stay in real-time sync, eliminating discrepancy complaints and compliance risk.
• Smart inventory management — automatically flag and promote near-expiry or slow-moving items to accelerate clearance without manual intervention.
• Cross-sell at the shelf — dynamic product recommendations and video ads run at the moment of decision, lifting average basket value without additional staff.

For brand owners: own the final metre

• Perfect in-store execution — verify remotely that your promotional messages are live, correctly placed, and running on time. No relying on store staff to execute.
• Win at the decision point — dynamic ads at shelf edge capture attention exactly where a competitor’s product is sitting next to yours.
• Real-time channel intelligence — monitor actual shelf prices, placement, and promotional visibility across retail terminals without manual store audits.
• Premium brand positioning — digital shelf merchandising signals innovation and investment to retail partners, strengthening the commercial relationship.

Built for permanent commercial deployment

Wi-Fi 6 and Bluetooth keep the DSB286 connected in dense retail environments where dozens of devices compete for bandwidth. At 25W, running costs across a full-store deployment are negligible. The ≥50,000-hour lifespan and CE/RoHS/FCC certifications confirm this is commercial-grade hardware, not adapted consumer technology. 7-day lead time. OEM/ODM supported.



Specifications

---

Size	28.6″ LCD panel
Weight	5.3 kg
Dimensions	714 × 226.6 × 24 mm
Active Area	698.45(H) ×196.45(V)mm
OS	Android 11.0
CPU	RK3566 Quad-core Cortex-A55
RAM	2G DDR4
ROM	32G EMMC(64G EMMC for optional)
Memory Extension	TF card expansion supports up to 64GB
Resolution	1920*540[RGB], 69PPI
Viewing Angles	89°/89°/89°/89°[CR≥10]
Frequency	60Hz
Brightness	500cd/㎡
Interfaces	2*USB, 1*DC, 1*HDMI Out, 1*RJ45, 1*TF card
Display Color	16.7M, 72%NTSC
Backlight	WLED
Internet	Support 2.4/5G WIFI6 connection + BT
Storage Environment	Temperature：-20℃～60℃ Humidity：5%～95% Atmospheric Pressure：86kPa～104kPa
Working Environment	Temperature：0℃～45℃ Humidity：10%～85% Atmospheric Pressure：86KPa～104KPa
Operating Voltage	100-240V(50/60Hz)
Power Consumption	25W
Software	Support CMS software and AIoT interactive software
Certifications	CE/ RoHS/ FCC
Installation	Mounting bracket
Lifespan	≥50000 hours

---
