18.5inch Wall Mounted Digital Signage (Model-DPW185)
- 17–40mm slim profile, 5kg — mounts anywhere without structural concerns
- Metal or plastic housing, wall bracket or desktop stand — two form factors, one product
- Split-screen display — show a camera feed, promotion, and menu board simultaneously
- HDMI, 2×USB, RJ45, TF card — connects to virtually any source or network
Share Our Solution With Your Network
Description
Big Impact, Small Footprint. The 18.5″ Wall-Mounted Digital Signage Built for Tight Spaces.(Model-DPW185)
The DPW185 mounts flush to any wall at just 17mm slim and 5kg — compact enough for corridors, counters, and queue lines, but fully capable with Android 10, CMS management, touch options, and customisable split-screen layouts. Metal or plastic housing. Wall bracket or desktop stand. Configure it for the space.
The display that fits where others don’t.
At 18.5 inches, the DPW185 is the right size for the spaces that get overlooked: the corridor between departments, the counter beside the checkout, the wall at the back of the queue. Small enough to blend in, bright enough to be seen, and fully capable of running the same CMS-managed content as a 65-inch floor-standing unit.
One screen. Multiple zones.
Split-screen display turns a single 18.5″ panel into a multi-purpose communications tool. Show a live CCTV feed in one zone and a promotional video in another. Display a menu board on the left and a countdown timer on the right. Queue management information above, product highlights below. The layout is customisable — configured once, managed remotely.

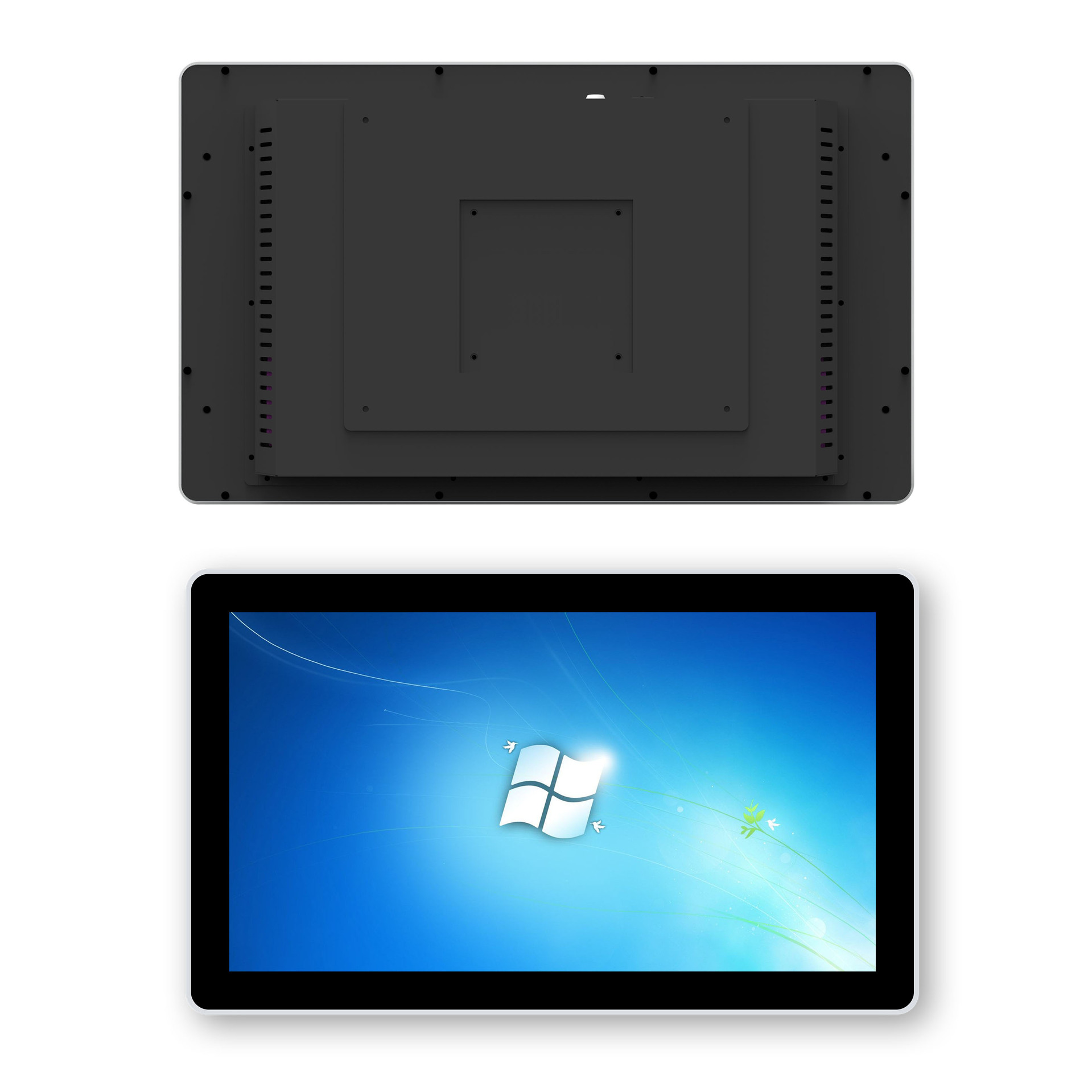

Metal or plastic. Wall or desk. Your choice.
The DPW185 ships in two housing materials — metal for commercial durability, plastic for cost-sensitive deployments — and supports two mounting configurations: VESA wall bracket for permanent installation, or desktop stand for flexible placement. At 462 × 284mm and 17–40mm deep depending on configuration, it fits into virtually any space without dominating it.
Touch or no touch — right-sized for the interaction
Non-touch for pure display. P-CAP touch for precision interaction. IR touch for larger gesture inputs. All three configurations run Android 10 as standard, with Windows 10 available for deployments that integrate with existing systems. CMS and AIoT interactive software keep content current across every unit from a single dashboard.
Built for continuous commercial use
- 5″ FHD display, 1920×1080, 250 cd/m² brightness
- 178° viewing angles (H and V)
- 30,000+ hour backlight lifespan
- Operating range: 0°C to 45°C
- Under 35W power draw — negligible running cost across large deployments
- CE, RoHS, FCC certified
- OEM/ODM supported | 10-day lead time | Express, air, or sea delivery
Specifications
| Size | 18.5″ |
|---|---|
| Dimensions | 462 × 284 × (17~40) mm |
| Active Area | 409.8(H) × 230.4(V)mm |
| OS | Android 10.0 (Windows 10 for optional) |
| RAM | 2G DDR4 |
| ROM | 16G EMMC(16G/32G/64G EMMC for optional) |
| Resolution | 1920*1080 |
| Touch | Non-touch/ P-CAP Touch/ IR Touch |
| Brightness | 250cd/㎡ |
| Interfaces | 2*USB, 1*DC, 1*HDMI Out, 1*RJ45, 1*TF card |
| Viewing Angles | 178°(H) X 178°(V) |
| Internet | WIFI/ Ethernet |
| Storage Environment | Temperature：-10℃～60℃ Humidity：5%～95% Atmospheric Pressure：86kPa～104kPa |
| Working Environment | Temperature：0℃～45℃ Humidity：10%～85% Atmospheric Pressure：86KPa～104KPa |
| Operating Voltage | 100-240V(50/60Hz) |
| Power Consumption | <35W |
| Software | Support CMS software and AIoT interactive software |
| Certifications | CE/ RoHS/ FCC |
| Lifespan | 30000+ hours |
Found a space for the DPW185? Let’s spec it out.
Your messages will be dealt with at director level and kept strictly confidential. Please fill in the form below, and we will contact you as soon as possible.
Additional information
| Customized Service | Support |
|---|---|
| OEM& ODM | Support |
| Package Size | TBD |
| Package | 1pc/Carton |
| Gross Weight | 5kg/Carton |
| Delivery | By Express/ By Air/ By Sea |
| Lead Time | 10 days |
