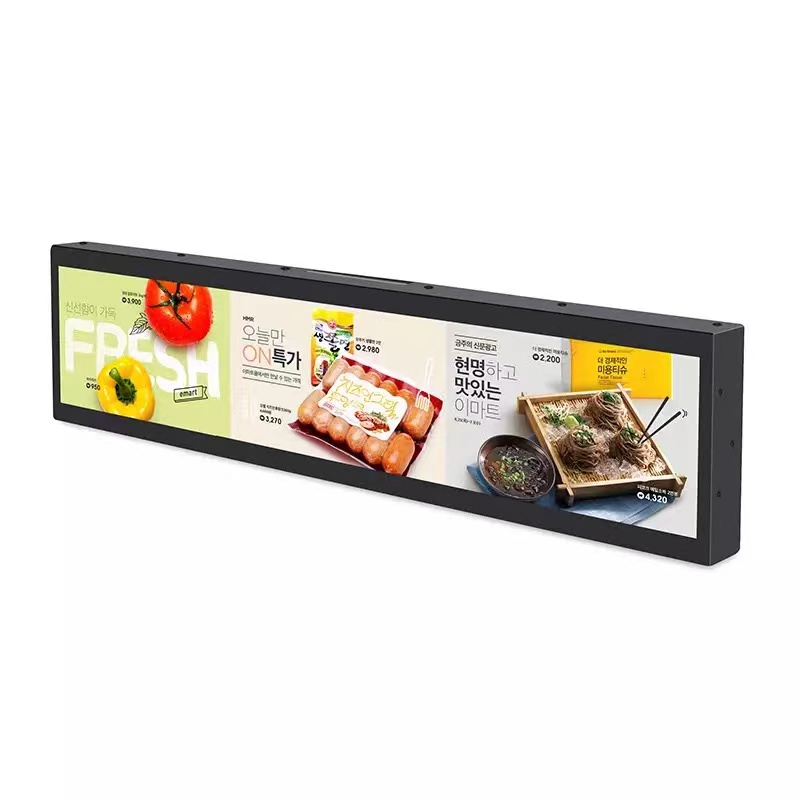

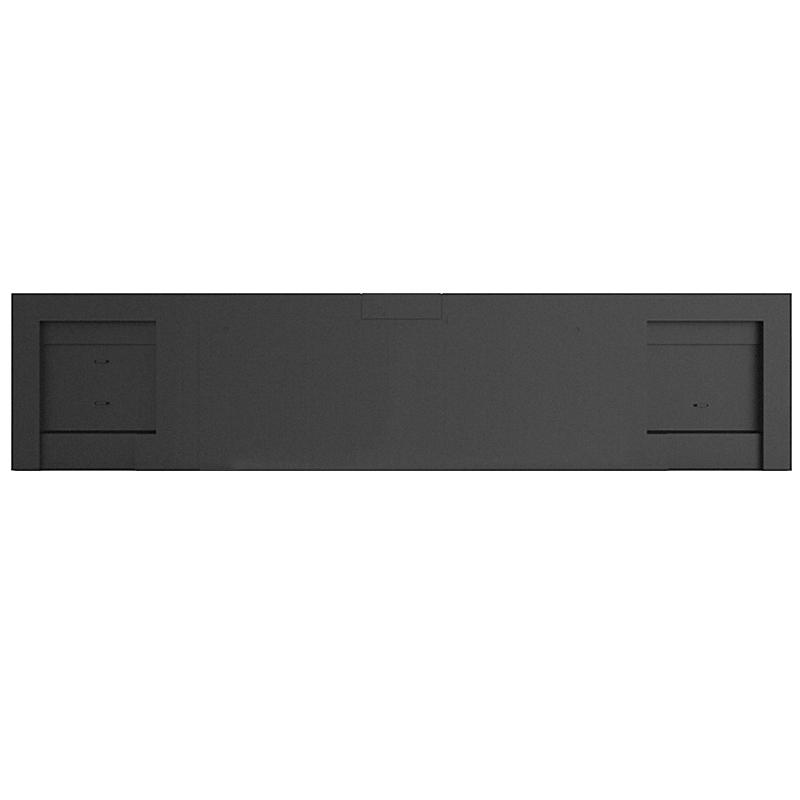

16.7inch Stretched Bar LCD Display With Touch (Model-DTB167-CP)

Description

Tap, Browse, Buy. The 16.7″ Touch Stretched Bar Display Built for the Shelf Edge.

The DTB167-CP brings P-CAP touch interaction to the shelf edge — in a unit just 450mm wide, 2.8kg, and under 18W. Shoppers tap to browse variants, check stock, and watch product demos right at the point of purchase. Android 11, CMS-managed, 500 cd/m² brightness, and dual-band Wi-Fi. 10-day lead time.



Passive signage tells shoppers what to think. Touch signage lets them decide.

The DTB167-CP turns a shelf edge into an interaction point. At 16.7 inches with P-CAP precision touch, a shopper can tap through product variants, watch a 30-second demo, check nutritional information, compare sizes, or activate a promotional offer — all without leaving the aisle and without picking up their phone. The content is managed remotely; the interaction happens at the shelf.

Small enough to go everywhere. Bright enough to be seen.

At 450mm wide, 150mm tall, and 2.8kg, the DTB167-CP fits on top of shelf rails, along gondola edges, on counter tops, and in display fixtures without structural modification. 500 cd/m² brightness pushes through standard retail ambient lighting with clarity — brighter than most shelf-edge displays at this size. At under 18W, running cost across a 100-unit deployment is negligible.

Built for public touch environments

Tempered glass protects the P-CAP touch surface from the daily impact of public use — taps, swipes, accidental contact, cleaning. The 89°/89°/89°/89° viewing angles mean content is equally readable from above, below, and either side — critical for a display at shelf height where shoppers approach from multiple directions and postures.

One platform, every unit in the range

Android 11 and CMS software manage content across every DTB167-CP in a deployment from a single dashboard. Dual-band Wi-Fi (2.4/5GHz) keeps connectivity reliable in busy retail environments. The same platform manages every other Android-based display in the DNR Display range — so a mixed deployment of shelf-edge touch bars, floor-standing signage, and hanging units all run from one CMS.

Specification summary

• 7″ stretched bar, 1366×366, 410×110mm active area
• 500 cd/m² brightness, 89°/89°/89°/89° viewing angles
• P-CAP touch, tempered glass surface
• 30,000+ hour lifespan | Under 18W
• Android 11.0, 2GB RAM, 32GB ROM (64GB optional)
• Dual-band Wi-Fi 2.4/5GHz, CMS and AIoT software support
• Operating: 0°C to 45°C | Storage: −20°C to 60°C
• CE, RoHS, FCC certified | OEM/ODM supported | 10-day lead time



Specifications

---

Weight	2.8 kg
Dimensions	450 × 150 × 30 mm
Active Area	410(H) ×110(V)mm
OS	Android 11.0
RAM	2G DDR4
ROM	32G EMMC(64G EMMC for optional)
Resolution	1366*366
Viewing Angles	89/89/89/89 (Typ.)(CR≥10)
Brightness	500cd/㎡
Interfaces	2*USB, 1*DC, 1*HDMI Out, 1*RJ45, 1*TF card
Display Color	16.7M
Internet	Support 2.4/5G WIFI connection
Storage Environment	Temperature：-20℃～60℃ Humidity：5%～95% Atmospheric Pressure：86kPa～104kPa
Working Environment	Temperature：0℃～45℃ Humidity：10%～85% Atmospheric Pressure：86KPa～104KPa
Operating Voltage	100-240V(50/60Hz)
Power Consumption	<18W
Software	Support CMS software and AIoT interactive software
Certifications	CE/ RoHS/ FCC
Lifespan	30000+ hours

---



Bringing touch to the shelf edge? Let’s spec the DTB167-CP for your layout.
