Built for the Vehicle. The 28.6″ Stretched Bar Display Engineered for Bus and Metro Deployments.

Description

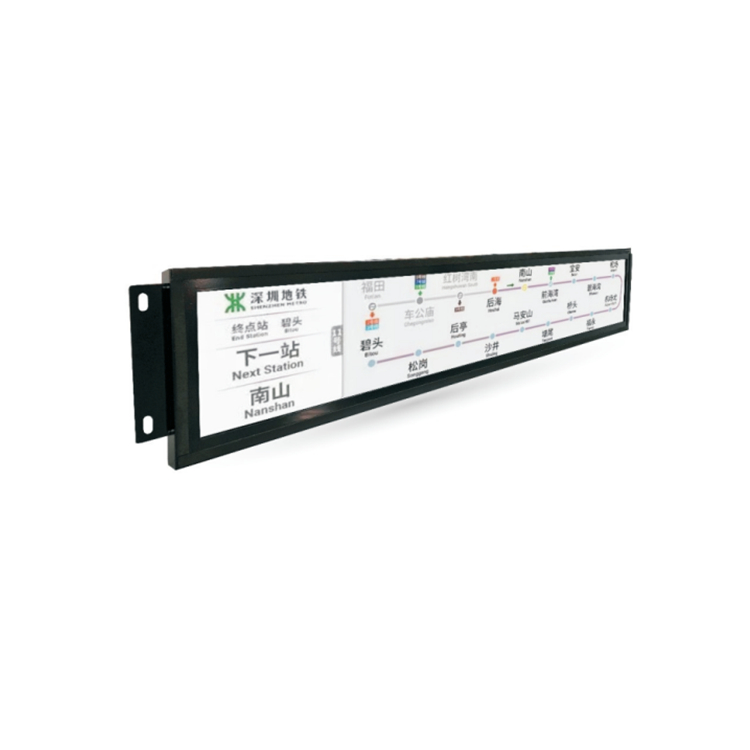

28.6-inch Stretched Bar LCD Display For Bus/Metro (Model-DTB286)

The DTB286 is purpose-built for transit environments — DC9–36V wide-range input handles vehicle electrical systems, an embedded flush-mount design eliminates overhead clearance issues, and 500 cd/m² brightness cuts through carriage ambient light. Android 11, CMS-ready, CE/RoHS/FCC certified. 10-day lead time.



Most displays aren’t built for vehicles. This one is.

Standard digital signage assumes a stable mains power supply, a controlled indoor environment, and a static mounting location. None of those assumptions hold in a bus or metro carriage. The DTB286 is designed from the ground up for the conditions that defeat off-the-shelf signage: variable DC power, vibration, temperature swings, and the spatial constraints of a vehicle interior.

Power that works with vehicle electrical systems

The DTB286 runs on DC9–36V wide-range input — the voltage range that covers everything from a 12V coach to a 36V metro carriage, handling the fluctuations and spikes that occur in real vehicle electrical environments. No inverter, no voltage regulator, no additional hardware between the vehicle’s electrical system and the display.

Flush-mounted. Permanently secure.

The embedded design mounts the DTB286 flush into the overhead panel of the vehicle interior — no bezel protrusion, no clearance height penalty, no risk of the unit working loose from vibration over time. At 750 × 255 × 52mm and 4.5kg, it fits the standard overhead display bay dimensions used across bus and metro rolling stock.

Bright enough for any carriage condition

At 500 cd/m², the DTB286 is significantly brighter than standard indoor signage panels. In a bus or metro carriage with windows on both sides and direct sunlight at certain times of day, that brightness margin is what separates a readable display from a washed-out one. 178° viewing angles ensure every passenger in the carriage gets a clear sightline.

Built for outdoor overnight storage

Storage-rated to -20°C, the DTB286 survives overnight parking in cold-climate depots without damage to the panel or electronics. Operating range covers 0°C to 45°C for in-service conditions. The aluminum alloy body adds structural rigidity for the constant vibration environment of a moving vehicle.

Managed centrally. Updated remotely.

Android 11 and CMS software mean route information, service announcements, and advertising content can be updated across every vehicle in the fleet from a single dashboard — without a technician boarding each vehicle. Wi-Fi connectivity handles the sync whenever the vehicle returns to depot.

Spec summary

• 28.6″ stretched bar display, 1920×553 resolution, 500 cd/m² brightness
• DC9–36V wide-range operating voltage
• Android 11, 2GB RAM, 32GB ROM
• 2.4GHz Wi-Fi, HDMI out, USB, TF card
• Storage: -20°C to 60°C | Operating: 0°C to 45°C
• Aluminum alloy body, embedded flush-mount
• CE, RoHS, FCC certified
• OEM/ODM supported | 10-day lead time | Express, air, or sea delivery



Specifications

---

Weight	4.5 kg
Dimensions	750 × 255 × 52mm
Active Area	698.45(H) ×196.45(V)mm
OS	Android 11.0
RAM	2G DDR4
ROM	32G EMMC(32G/64G EMMC for optional)
Resolution	1920*553
Viewing Angles	178°(H) X 178°(V)
Brightness	500cd/㎡
Interfaces	1*USB, 1*DC, 1*HDMI Out, 1*TF card
Display Color	16.7M
Internet	Support 2.4G WIFI connection
Storage Environment	Temperature：-20℃～60℃ Humidity：5%～95% Atmospheric Pressure：86kPa～104kPa
Working Environment	Temperature：0℃～45℃ Humidity：10%～85% Atmospheric Pressure：86KPa～104KPa
Operating Voltage	DC9-36V
Power Consumption	<30W
Software	Support CMS software and AIoT interactive software
Certifications	CE/ RoHS/ FCC

---
