Description

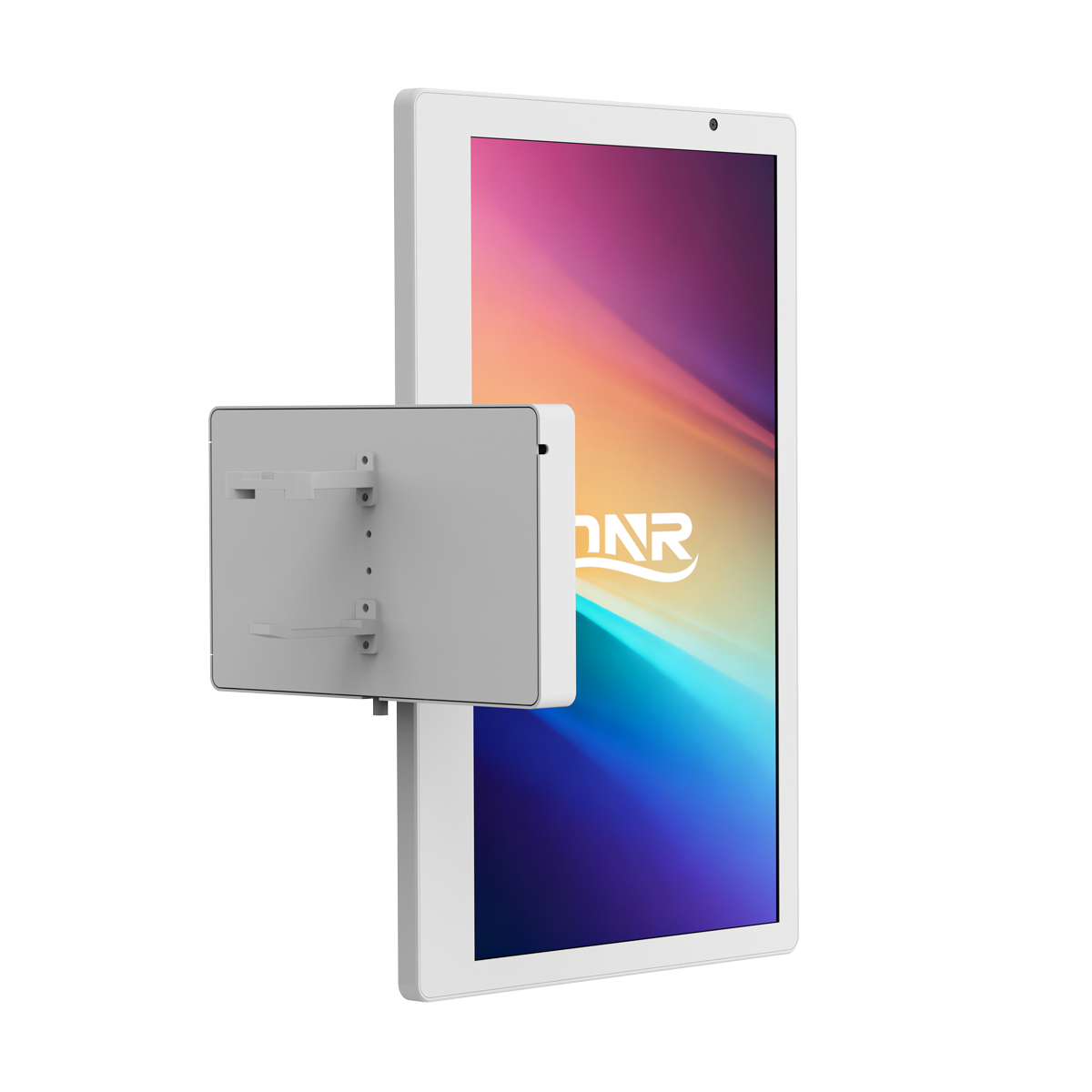

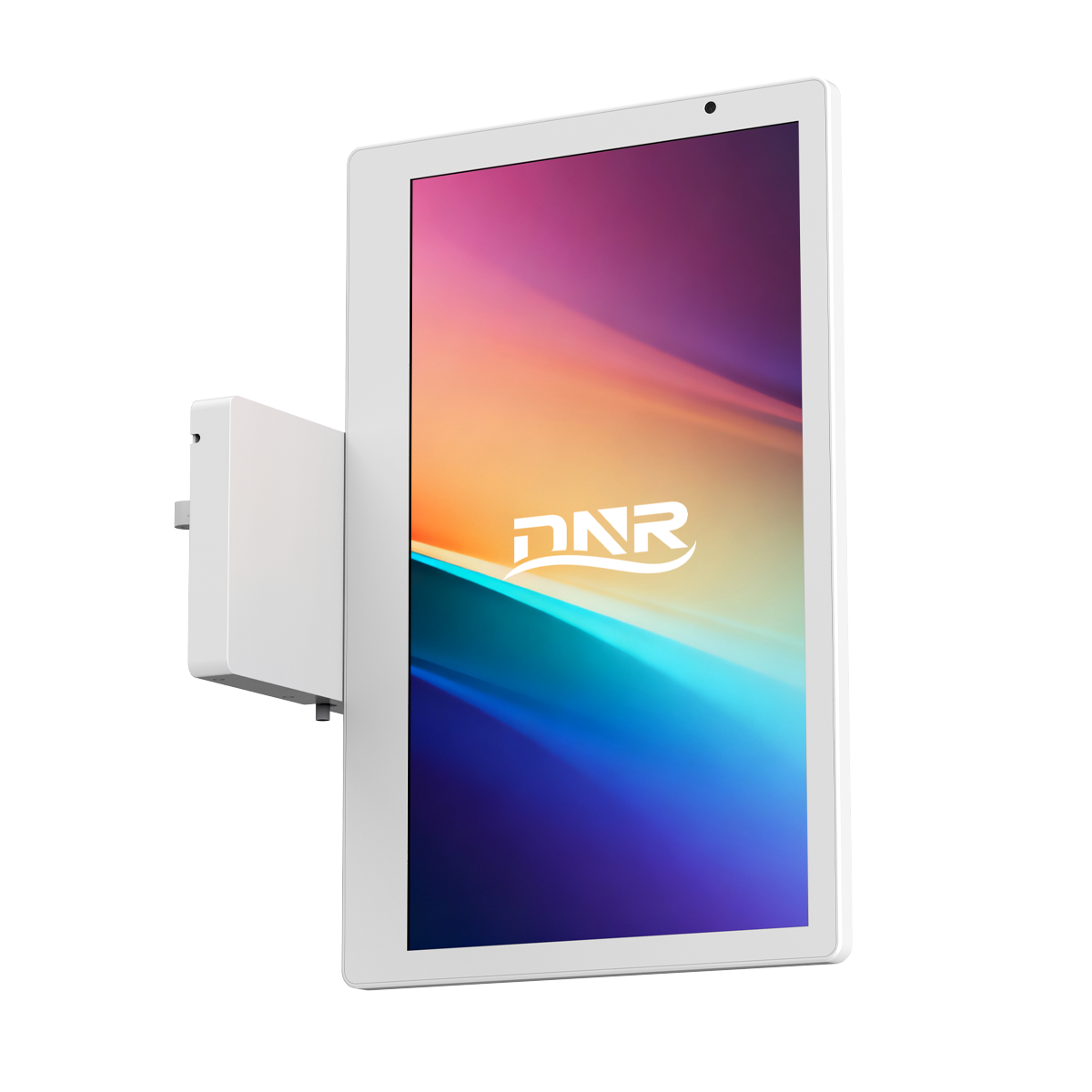

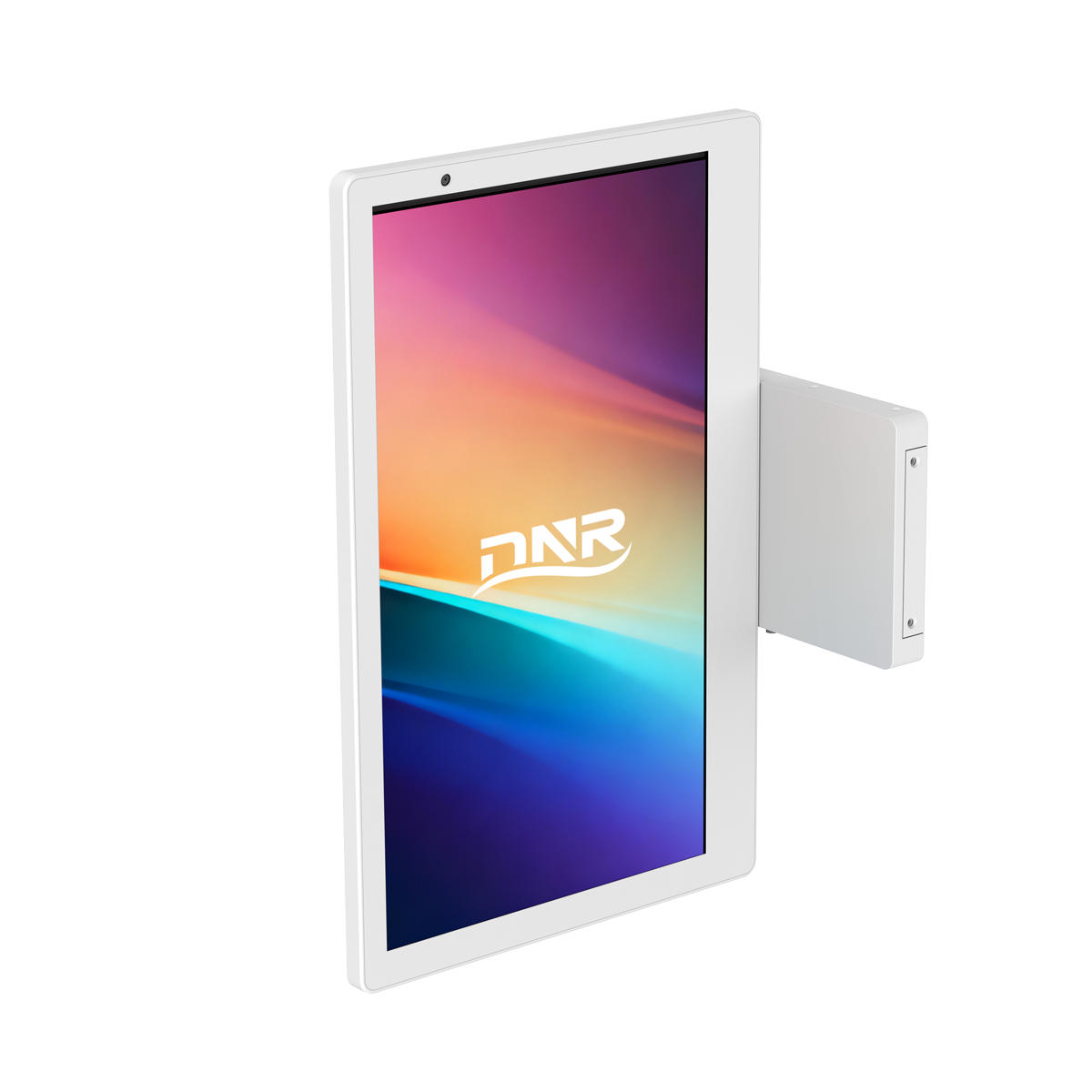

15.6″ Digital Stopper Double-sided LCD Display (Model-DXM156-DS)
The AI Shelf Display is a next-generation smart shelf screen equipped with advanced visual recognition technology through built-in camera. Designed for modern retail environments, it automatically identifies products, updates on-shelf content, and delivers precise digital communication at the point of purchase.
| Size | 15.6″ LCD Panel |
|---|---|
| Active area | 344.16[W] * 193.59[H]mm |
| Resolution | 1920[RGB] * 1080, FHD, 141PPI |
| Brightness | 300cd/m² |
| Display color | 262K, 45%NTSC |
| Backlight | WLED |
| Viewing angles | 85/85/85/85[Typ.][CR≥10] |
| Frequency | 60Hz |
| Lifespan | ≥30000 hours |
| CPU | Rockchip RK3568 Quad-core ARM Cortex-A55 |
| RAM | 2G LPDDR4 |
| ROM | 16G EMMC |
| Memory extension | TF card extension with the highest support for 64GB |
| OS | Linux |
| Internet | Support 2.4G WiFi connection |
| RTC real-time clock | Support timing on/off function |
| Interfaces | 1*RJ45 / 1*HDMI OUT, 1*TF card slot
1*USB[3.0] / 1*USB[OTG] 1*EARPHONE OUT / 1*DC[12V] |
| Operating voltage | 100-240V[50/60Hz] |
| Power consumption | ≤40W |
| Outline dimensions | 375.5 × 239.5 × 12mm |
| Installation | Holder bracket |
| Material | Sheet metal materials |
| N.W. | ≤2kg |
Your valuable inquiry or feedback for “15.6-inch Digital Stopper Double-sided LCD Display (Model-DXM156-DS)” is undoubtedly essential to us！
Your comments will be dealt with at director level and kept strictly confidential. Please fill in the form below, and we will contact you as soon as possible.
Additional information
| Customized Service | Support |
|---|---|
| OEM& ODM | Support |
| Package Size | TBD |
| Package | 1pc/Carton |
| Gross Weight | TBD |
| Delivery | By Express/ By Air/ By Sea |
| Lead Time | 10 days |
